Spare parts Francis Francis

The FF machines are available in various versions:

Francis Francis machines have been in production since 1998 and several have been produced. The following applies to X1, X2, X3, X4 and X5. The X6 is always a Trio version. We do not have parts for the X7 to X9.

Aluminum boiler (1st generation): Classic (1999 - early 2004)

Aluminum boiler (1st generation): Classic (1999 - early 2004) - Aluminum interior - ESE serving and ground coffee. Look at the brew group, the whole area (except the piston ring) must be silver colored. Outer size of the filter support (ESE and ground) is 66 mm and is made without outlet but only had two holes from which the coffee was dispensed. The glasses of the lights are red (even if the machine is switched off). Upper lamp is red and is the on / off indicator. The bottom light illuminates red when heating up and goes out when the temp is reached.

Unfortunately there are no parts available for this. (except the pump)

Brass boiler (2nd generation): Classic (late 2003 - mid 2008)

Bronze / brass interior - ESE servings and ground coffee. Look at the brew group, the whole area (except the piston ring) must be colored in bronze. External dimension of the filter support (ESE and ground) is 71 mm and is equipped with a spout that is screwed on it (ground coffee filter support). Upper lamp is red and is the on / off indicator. The bottom light illuminates red when heating up and goes out when the temp is reached.

We still have a fairly wide range of parts for this: element, gaskets, filters, etc. The element unfortunately sometimes breaks down causing the earth leakage switch to fly out. Replacing is relatively easy to do yourself. Would you prefer to have it done? Contact us.

Brass boiler (3generation): (end 2007 - present)

Bronze / brass interior - Ground coffee. Look at the brew group, the whole area (except the piston ring) must be colored in brass. External dimension of the filter support (ESE and ground) is 71 mm and is equipped with a plastic spout that is screwed on (equivalent to the 2nd generation). Image icons under the switches. The glasses of the lights are clear when the machine is switched off. The upper light is for on / off indication. The bottom light remains clear until the machine is warm, it then turns green in combination with a beep.

We still have a fairly wide range of parts for this. Oa element, gaskets, filter support. The element unfortunately still sometimes break down causing the earth leakage switch to fly out. Replacing is relatively easy to do yourself. Would you prefer to have it done? Contact us.

TRIO - Brass boiler - Only for ESE servings.

The filter carrier has a black plastic inside where the ESE serves. This plastic piece protrudes through the filter support and there is a black plastic spout. The flange of the brewing group (chromed) has three icons on it that illustrate the three extraction processes of the TRIO (hence the name trio).

We have no specific parts available for this, except for the O-ring that closes the filter holder (G904)


The FF items shown below are the only ones we can deliver unfortunately!

  • O-ring steam tap/pipe Francis Francis
    O-ring steam tap/pipe Francis Francis

    4,2 x 1,9

    C002485

    O-ring for the steam pipe and the spindle of the Francis Francis tap, we advise you to fit these o-rings with a little bit of high temperature grease.

    € 0,75
  • Shower screw Francis Francis
    Shower screw Francis Francis

    For 2nd and 3rd generation M4x8

    For ESE and ground version

    C000289

    € 0,85
  • Nut group holder 57mm
    Nut group holder 57mm

    7 x m5

    ODMC070

    Francis Francis

    Lelit

    Pavoni Domus Bar PROD. UNTIL JUNE 2013

    Smaller nut so that it fits in the group holder.

    € 0,95
  • Screw boiler Francis Francis
  • Pipe tank / pump QuickMill / Ascaso
  • Spring filterholder 57mm
    Spring filterholder 57mm

    For all machines with a 57 mm filter (inner diameter = tamper diameter)

    Replace this spring when your filters fall out the portafilter.

    For Ascaso, QuickMill 810 ground coffee, Francis Francis, Pavoni, Lelit, Bugatti

    € 1,25
  • Lubricant for filter holder (Portion)
    Lubricant for filter holder (Portion)

    With this special Molicote paste you lubricate your filter holder and group. Put the past under the ears of the filter holder and then you turn the filter holder into the brew group so that paste also comes in the tread. The paste…

    € 1,50
  • Nut resistance Francis Francis
    Nut resistance Francis Francis

    M10x1

    € 1,50
  • O-ring resistance Francis Francis (set of 2)
    O-ring resistance Francis Francis (set of 2)

    Silicone 9 x 2,2 mm

    When the resistance/heating element is leaking you can replace these o-rings. (price per 2)

    € 2,15
  • -25%

    O-ring Francis Francis Trio
    O-ring Francis Francis Trio

    +/- 40 x 2,7 mm

    C002361

    Only for FF Trio machines (Pod only)

    € 3,95 € 2,95
  • Spout single short
    Spout single short

    3/8" (16,66mm), Length 29mm

    € 3,50
  • Safety thermostat 167 degrees
  • Spout double short
    Spout double short

    3/8g thread

    € 3,95
  • Boiler gasket Francis Francis aluminium boiler
    Boiler gasket Francis Francis aluminium boiler

    Boiler gasket for Francis Francis with aluminium boiler (1ste generatie)

    5,34 x 69,22

    C001086

    € 4,25
  • Boiler gasket Francis Francis brass boiler
    Boiler gasket Francis Francis brass boiler

    For all FF machines with a brass boiler D.71,12 x 2,62

    C000119

    € 4,95
  • Pump self-priming bypass
    Pump self-priming bypass

    Used in many espresso machines to drain off the air. Self-priming in counter pressure conditions.

    Also available in a higher quality brass version.

    Assemble with Loxeal or PTFE Tape or with an o-ring.

    1/8m x 1/8f

    € 4,95
  • Shower ground coffee Francis Francis
    Shower ground coffee Francis Francis

    Francis Francis X-series for ground coffee. Standard in 3rd generation machines, optional in 2nd generation when a disk is fitted.

    € 4,95
  • Groupgasket ESE Francis Francis brass boiler
    Groupgasket ESE Francis Francis brass boiler

    ESE/POD group gasket for FF with brass boiler, suitable for the Francis Francis 2nd & 3rd generation (with bronze boiler), not suitable for the FF trio or with aluminum boiler (X1 1st series).

    C000169 OR D.42x4mm

    € 5,95
  • Purifier standard
    Purifier standard

    The ideal way to reduce limescale in your machine. Suitable for all types of espresso machines with a hose in the water tank.

    This purifier, is filled with resin granules and works according to ion exchange.

    The standard…

    € 5,95
  • Spring + valve Francis Francis
    Spring + valve Francis Francis

    For the Francis Francis 2nd & 3rd generation (with brass boiler)

    C000117 + C000116

    € 5,95
  • Filter 1 cup Francis Francis
    Filter 1 cup Francis Francis

    Francis Francis for ground coffee. Only suitable for the Francis Francis with bronze boiler, not suitable for the FF trio or with aluminum boiler.

    Tamper size 57mm

    € 6,95
  • Filter 2 cup Francis Francis
    Filter 2 cup Francis Francis

    Francis Francis for ground coffee. Only suitable for the Francis Francis with bronze boiler, not suitable for the FF trio or with aluminum boiler.

    Tamper size 57mm

    € 6,95
  • Group gasket Francis Francis ground coffee brass boiler
    Group gasket Francis Francis ground coffee brass boiler

    Black (or red) group gasket, to be used if you use your Francis Francis with ground coffee. Only suitable for the Francis Francis 2nd & 3rd generation (with brass boiler/ ground coffee), not suitable for the FF trio or with…

    € 6,95
  • Group thread Francis Francis
    Group thread Francis Francis

    011008901

    M12x1,0

    M4x0,75

    For brass boiler

    € 6,95
  • Groupgasket ESE Francis Francis aluminium boiler
    Groupgasket ESE Francis Francis aluminium boiler

    ESE/POD group gasket for FF with aluminium boiler, suitable for the Francis Francis 1st generation. Not suitable for the FF trio or withbrass boiler.

    C0001076

    € 6,95
  • Shower ESE Francis Francis
    Shower ESE Francis Francis

    C000171

    € 6,95
  • Group gasket Francis Francis aluminium boiler
    Group gasket Francis Francis aluminium boiler

    Groupgasket fof Francis Francis with aluminium brewhead/boiler (1st generation)

    53x64,5x5,5

    C001077

    € 7,25
  • Thermostat 100 degrees
    Thermostat 100 degrees

    M4

    € 7,95
  • Filter ESE Francis Francis
    Filter ESE Francis Francis

    Keuze uit:

    #1 (Espresso klein)
    #2 (Espresso groot)Nummer staat in de rand vermeld, staat er geen nummer, dan heeft u zeefje 1.

    Lees meer over het gebruik van de verschillende filters bij onze tips en trucs over ESE…

    € 9,95
  • Thermostat 140 degrees
    Thermostat 140 degrees

    M4

    Ascaso, Francis Francis and Lelit

    € 11,95
  • Lever switch 2 poles
    Lever switch 2 poles
    € 14,95
  • Shower IMS 200 IM competition style 57mm groups
    Shower IMS 200 IM competition style 57mm groups

    IMS is the standard for baristas competing at the competition level. You can now place this shower in your espresso machine with a 57mm brew group. The surface is extremely smooth and the holes are perfectly distributed. An…

    € 15,50
  • Disk + shower Francis Francis ground coffee
    Disk + shower Francis Francis ground coffee

    If you have a Francis Francis for ESE servings/PODS and/or ground coffee, you can easily use ground coffee in your machine with this set.

    For the machines with brass boiler (mostly 2nd generation machines) this filler disc…

    € 18,95
  • Filter IMS competition style 14/16 gram 57mm group
    Filter IMS competition style 14/16 gram 57mm group

    IMS is the standard for baristas who participate at competition level. You can now also place this filter in your filterholder at home. The surface is extremely smooth and the holes are perfectly distributed. Improved water and…

    € 19,50
  • Francis Francis thermometer (repairkit)
    Francis Francis thermometer (repairkit)

    Repair kit for the thermometer of your Francis Francis X1, a complete one is unfortunately not available. With a bit of patience and a littte help from our video, you can put a new inside in the thermometer of your FF. You wille…

    € 21,50
  • Group holder 57mm group
    Group holder 57mm group

    ODMC052

    MC052

    LELIT: PL040, PL041, ANITA (PL042EM 2012), PL042QE 2009, ANNA (PL41TEM 2010)

    PAVONI DOMUS BAR

    PAVOMI DOMUS CASA

    Francis Francis brass boiler (not Trio)

    OUTSIDE DIMENSIONS: 81x81 mm

    HEIGHT: 41 mm

    HOLE PITCH…

    € 24,95
  • Disk + IMS Competion shower Francis Francis ground coffee
    Disk + IMS Competion shower Francis Francis ground coffee

    If you have a Francis Francis for ESE servings/PODS and/or ground coffee, you can easily use ground coffee in your machine with this set.

    Commes wiht IMS shower, IMS is the standard for baristas that participate at competition…

    € 29,50
  • Filter holder Francis Francis
    Filter holder Francis Francis

    Filter holder for:

    Francis Francis X-series with brass boiler (2nd generation and newer. Not for Trio or Iperespresso versions)

    Pavoni Domus Bar

    57mm groups.

    € 29,95
  • -14%

    Pump Ulka EX5 230volt
    Pump Ulka EX5 230volt
    € 34,95 € 29,95
  • Thermometer Francis Francis (replacement)
    Thermometer Francis Francis (replacement)

    The original thermometer of your Francis Francis is unfortunately no longer available new, but we have found a nice alternative that can be placed in the front of your machine without adjustments.

    € 34,50
  • Naked filter holder 57mm groups
    Naked filter holder 57mm groups

    Get the best shots from your espresso machine with this naked filterholder (open filter holder) Use this in combination with the standard supplied 14 gram filter and see how the crema comes out the filter. In addition, the naked…

    € 36,95

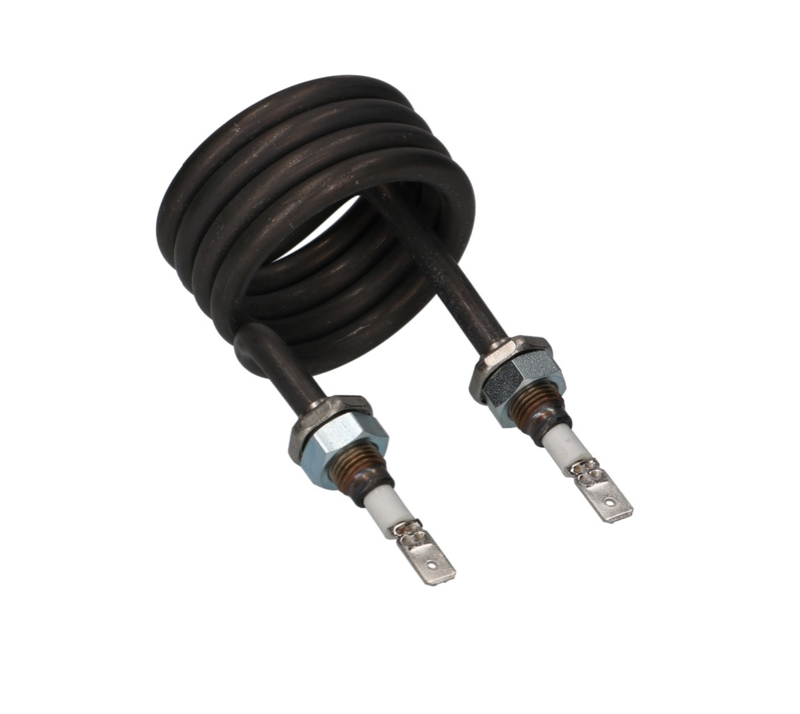

  • Boiler resistance Francis Francis brass boiler
    Boiler resistance Francis Francis brass boiler

    For all brass boilers

    1000 watt 230 volt

    The boiler does not include gaskets and boiler gasket.

    immersed length 55 mm - 2 poles
    ø 50 mm - fittings M10

    € 39,95
  • Filter holder Francis Francis with walnut handle
    Filter holder Francis Francis with walnut handle

    Beautifull filterholder with beautifull for Francis Francis X-series wiht brass boiler, complete with double spout.

    € 39,95
  • Naked filter holder 57mm groups walnut
    Naked filter holder 57mm groups walnut

    Lelit PL41EM PL41TEM PL41LEM PL60 PL42EM PL42TEMD PL81T

    For Plus serie/58mm you can use E61 naked filterholder.

    Pavoni Domus BAR

    Francis Francis 2nd and 3rd generation. Brass boiler.

    € 39,95
  • Filter holder Francis Francis ESE
  • Conversion kit Francis Francis pod to ground coffee
    Conversion kit Francis Francis pod to ground coffee

    Conversion kit for Francis Francis 2nd generation with brass boiler to adapted from ESE servings to ground coffee usage.

    Including:

    ∙ Disk ground coffee
    ∙ Shower ground coffee
    ∙ Shower screw ground coffee
    ∙ Group gasket…

    € 59,95
